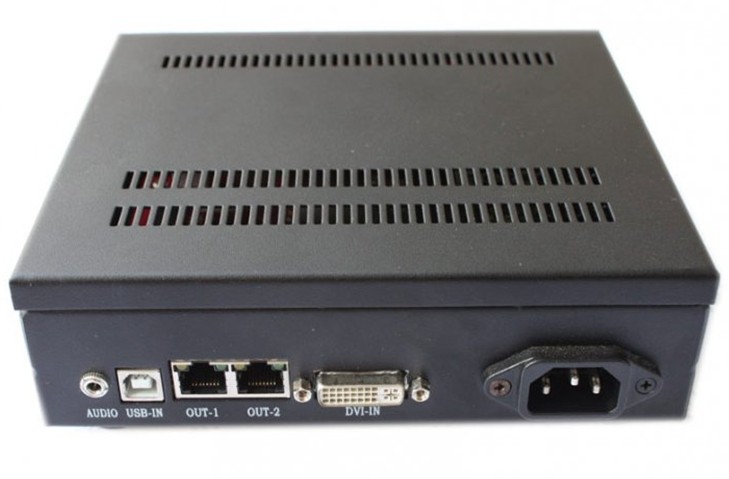

DBStar (DBS-HVT11OUT) Exterior LED Sender Box

Product 5/26

Previous
Return to the Product List
Next
Starting at: $215.00
Add to Cart:

  • Model: CLS-DBS-HVT11OUT
  • Shipping Weight: 3KG
  • 11 Units in Stock
  • Manufactured by: Dbstar

Please Choose:





DBStar (DBS-HVT11OUT) Exterior LED Sender Box

Features:

1.Support RGB ,the maxinmum number or color supported is one billion
2.Support sound transmission
3.Support hot backup of dual LAN lines
4.Support input of DVI digital signal
5. Support HDMI 1.3B standard ,support AADCP1.2 protocal
6.Rotation angles 0 .90. 180. 270
7.Support encryption time by software setting
8.Support dual ports lateral ,blank line and insert line setup
9.Working voltage range: 100-240V AC 50/60HZ
10.USB port communication single card can drive 1280*1024 ,1024*1200,2048*640
11.Support OE and PWM brightness adjustment ,turn on/off an lock screen through  the panel key.

 Type
Typical value
Max value
 Supported screen type
 single color, dual-color,full-color, real pixel,virtual pixel.
 Supported LED drivers
MBI5026/MBI5030/MBI5036/
MBI5039/MBI5042/MBI5050/MBI6024/
LPD6803/DM413/DMX512/ZQL9726
TCD62D722/TC62D766/MBI5050/MBI6024
 Pixels by single sending card
2048×640(dual ports)

 Number of receiving cards connected by cable
<100
256
 Pixels by single receiving cards
256 x192（full color）
1024 x512（dual color）
512×384（full color）
1280 x512（dual color）
 RGB data groups by single receiving card
16-24
24
 Lines by one group RGB
1/2/4/8/16/32
32
Grey grades
4096(4k)
65536(64k)
 Data CLK frequency
15.62MHz
31.25MHz
 Refresh rate
180Hz
>3600Hz(如MBI5042)
 Brightness wastage
15~20%
<5%
 PWM brightness adjust degree
256(may automatically adjust by brightness sensor)
Electronic current plus brightness adjustment grade
64/256(according to led drivers)
 Dot by dot revise pixels by PWM brightness
64x64
256x256
Pixels on open circuit and short circuit error detection
static：2048x16；1/2：1024x16；
1/4：2048x16；1/8：4096x16；1/16：8192x16
 Fiber transmission distance
 Multi-mode fiber ：500meters； single-mode fiber：10KMs
 Other functions
 Power on gradual protection 、
OE Polarity switch protect screen scan tubes,
led screen self-detecting
No sending card function
Sending images by 1000M network card PC
